Reviewed equipment evidence
Election equipment, separated by what the source actually proves.
Explore EAC-certified configurations, VSTL test and change records, state approvals, public findings, and jurisdiction observations without treating those different evidence scopes as interchangeable.
State equipment share pages
Select a state to build a source-bounded preview
Each state URL lists every connected dossier, distinguishes named product-family evidence from manufacturer-only context, and includes dossier-level networking status in its social link preview.
Reviewed systems
Available equipment dossiers
Every visible claim resolves to one or more archived sources.

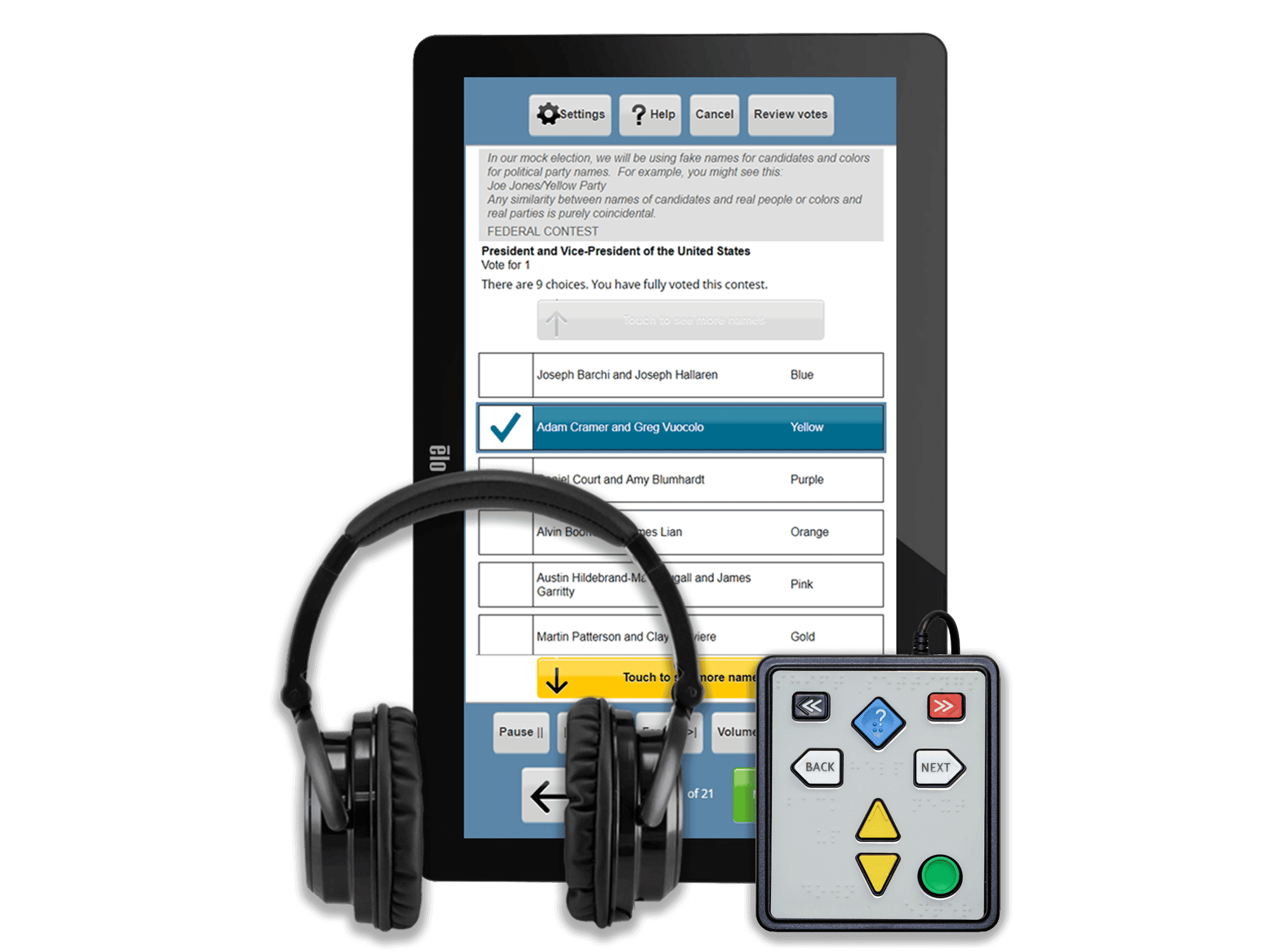

Source reference imageManufacturer product image: ClearAccess touchscreen, headphones, and accessible keypad.
publishedCBG-CV-25
Clear Ballot ClearVote 2.5 / ClearAccess
A source-linked dossier for the ClearAccess ballot-marking configuration within EAC-certified ClearVote 2.5, including named COTS components, explicit external UPS options, certified software observations, and Pro V&V test findings.
- Role
- Accessible touchscreen ballot-marking configuration
- Components
- 9
- Change records
- 3
- Sources
- 8
NetworkingNo network attachment in the reviewed station configurationThis describes the reviewed certified configuration and manufacturer policy, not an inspection of a fielded unit.
49 named product-family locale rows across 7 states25 manufacturer-context locale rows across 2 states
Open source-linked dossier

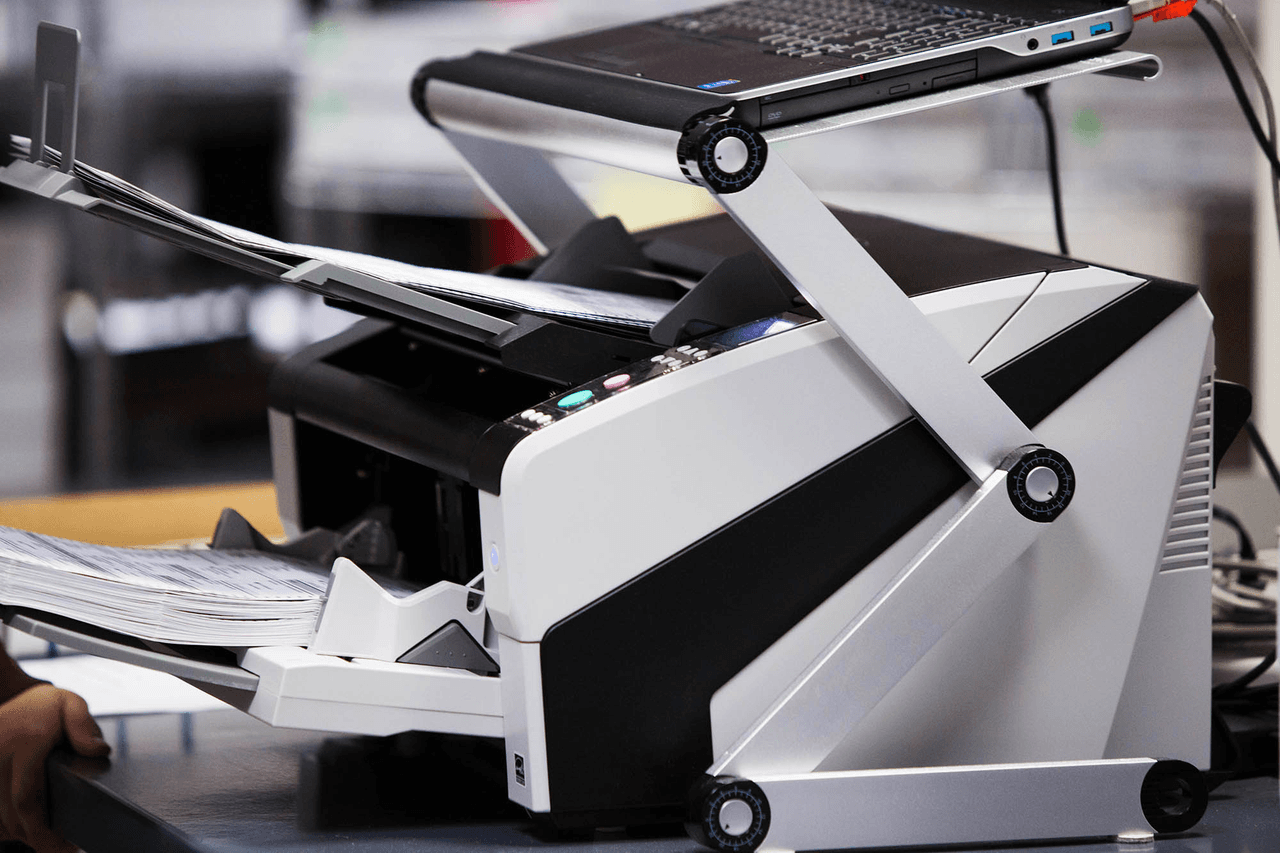

Source reference imageManufacturer photograph of a ClearCount scanner-and-laptop arrangement.
publishedCBG-CV-25
Clear Ballot ClearVote 2.5 / ClearCount
A separate source-linked dossier for the ClearCount 2.5 central-count system, which uses a CountServer, ScanStations paired with certified COTS scanners, CountStations, a closed wired network, and an external UPS.
- Role
- Central-count scanning, tabulation, adjudication, and reporting system
- Components
- 7
- Change records
- 1
- Sources
- 7
NetworkingClosed wired Ethernet system documentedThe certification record does not establish a jurisdiction's live cabling, switch settings, or current installation.
74 manufacturer-context locale rows across 8 states
Open source-linked dossier

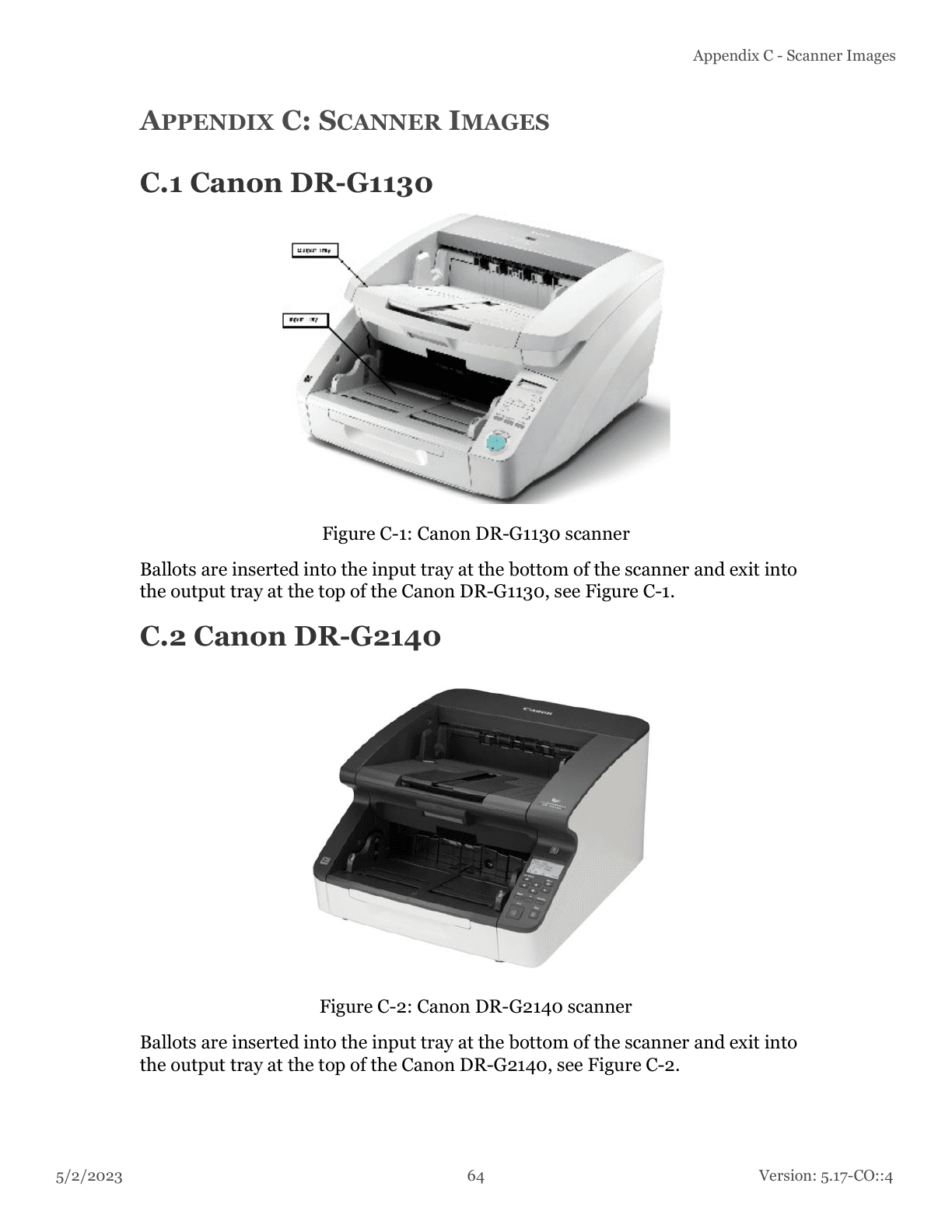

Source reference imageColorado-hosted 5.17-CO guide page with photographs of two certified Canon scanner alternatives.
publishedDVS-DemSuite5.17
Dominion Democracy Suite 5.17 / ImageCast Central
A separate source-linked dossier for the ImageCast Central configuration: a certified COTS high-speed scanner, workstation, ICC application, removable-media accessories, optional isolated network infrastructure, and documented backup power.
- Role
- Central-count ballot scanning and tabulation system
- Components
- 7
- Change records
- 1
- Sources
- 6
NetworkingOptional isolated-LAN infrastructure documentedThe optional infrastructure is part of the reviewed documentation; a jurisdiction connection or field network state is not established.
605 manufacturer-context locale rows across 23 states
Open source-linked dossier

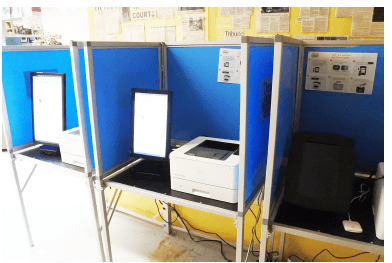

Source reference imageActual-device photograph from an official usability report: ICX 21, ICX 15, and ICX 12.2.
publishedDVS-DemSuite5.17
Dominion Democracy Suite 5.17 / ImageCast X
A source-linked dossier for the ImageCast X ballot-marking device within EAC-certified Democracy Suite 5.17, including certified device alternatives, external UPS options, version observations, Pro V&V results, and EAC-hosted post-certification advisories.
- Role
- Accessible touchscreen ballot-marking configuration
- Components
- 12
- Change records
- 4
- Sources
- 12
NetworkingBuilt-in Ethernet capability documentedA physical interface is not evidence that an external peer was connected, enabled, or used in a jurisdiction.
382 named product-family locale rows across 15 states225 manufacturer-context locale rows across 15 states
Open source-linked dossier

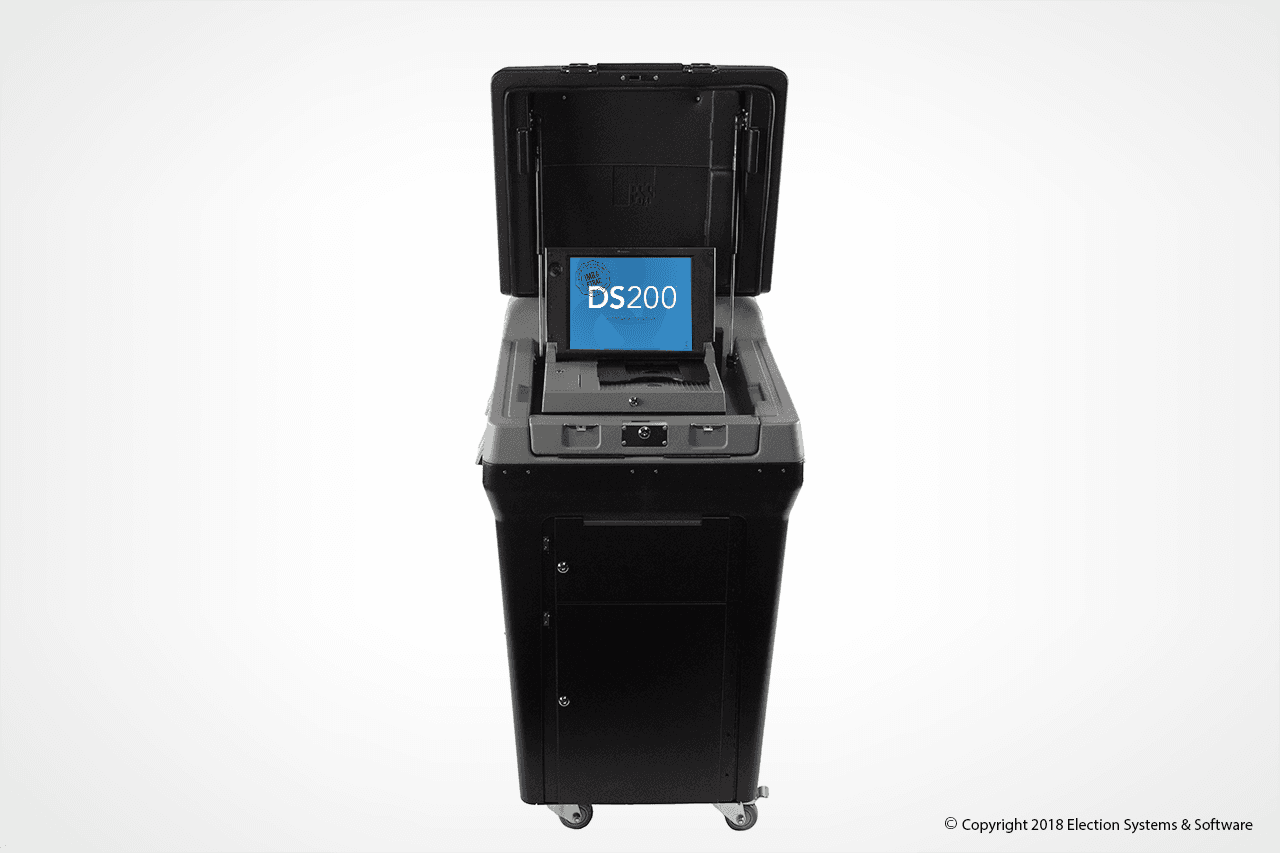

Source reference imageManufacturer product photograph: DS200 open in its poll-place configuration.
publishedESSEVS6400
ES&S EVS 6.4.0.0 / DS200
A source-linked pilot dossier for the DS200 within the EAC-certified EVS 6.4.0.0 configuration, with historical change records, separately scoped optional modem models and vulnerability reviews, and a labeled Washington deployment observation.
- Role
- Polling-place digital scanner and tabulator
- Components
- 12
- Change records
- 6
- Sources
- 40
NetworkingOptional cellular modem hardware documented historicallyThose records do not establish inclusion in EVS 6.4.0.0 certification, modem firmware, activation, or use in a particular fielded unit.
1,509 manufacturer-context locale rows across 40 states
Open source-linked dossier

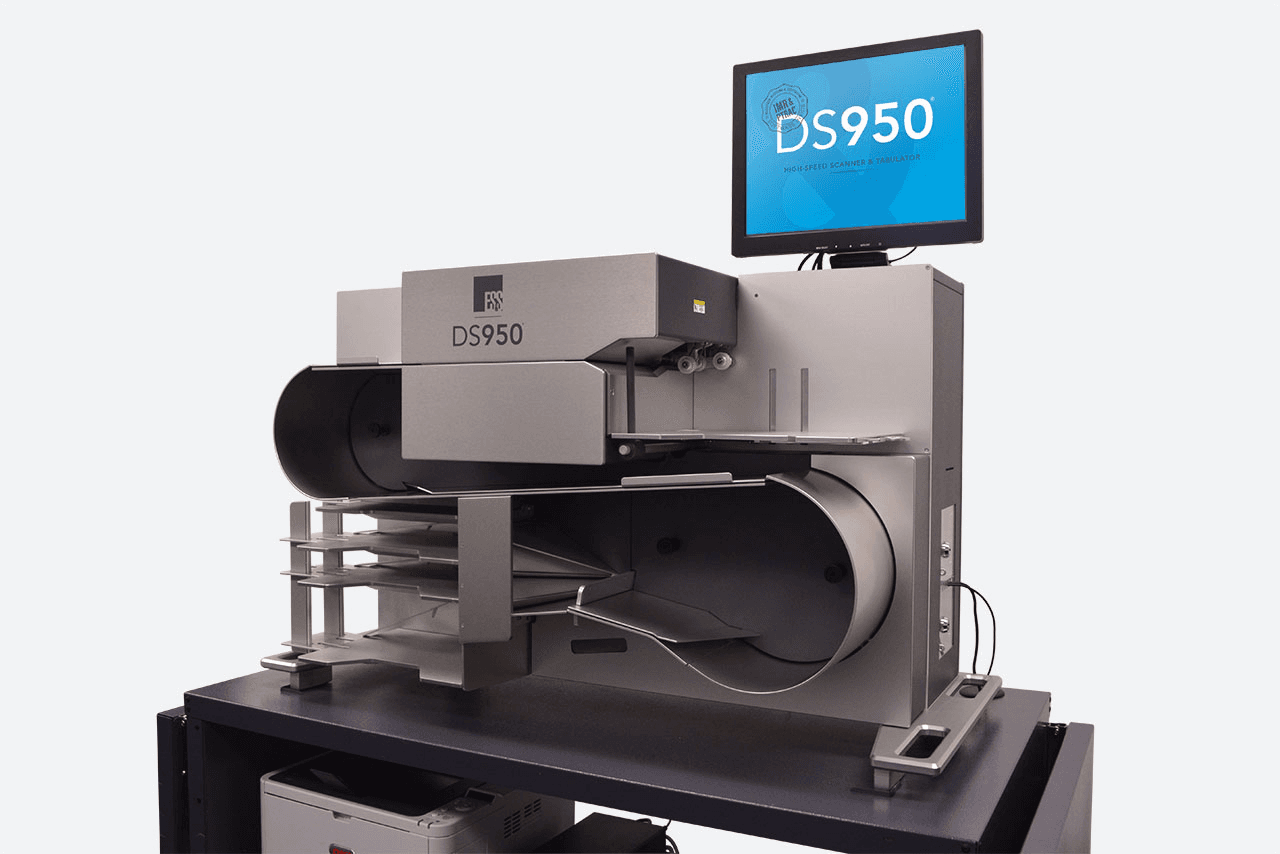

Source reference imageManufacturer catalog photograph of the DS950 central-count scanner and tabulator.
publishedESSEVS6400
ES&S EVS 6.4.0.0 / DS950
A separate source-linked dossier for the certified DS950 central-count scanner/tabulator, including firmware and hardware revisions, documented motherboard and storage changes, output-transport firmware, central-count cart, and certified UPS alternatives.
- Role
- High-speed central-count scanner and tabulator
- Components
- 10
- Change records
- 2
- Sources
- 5
NetworkingClosed-LAN result path documented in testingA laboratory test path does not establish a jurisdiction's switch, connection, settings, or field use.
1,509 manufacturer-context locale rows across 40 states
Open source-linked dossier An EAC engineering change order documents an approved change to one or more certified configurations. It does not establish that a particular jurisdiction installed the change, and a VSTL record is not a unit-level service or repair history.
