Civic Result MapsU.S. election equipment evidence

Source-linked configuration dossier

Clear Ballot ClearVote 2.5 / ClearAccess

A source-linked dossier for the ClearAccess ballot-marking configuration within EAC-certified ClearVote 2.5, including named COTS components, explicit external UPS options, certified software observations, and Pro V&V test findings.

Federal certificate CBG-CV-25VVSG 1.0VSTL: Pro V&V, Inc.Editorial: published r6
Components9all source-linked
Hardware facts82 explicit unknowns
Change records3field status kept separate
Findings/statuses4version-scoped
Archived sources8local hash verified

Source-bounded topology

Documented topology, controls, and unknowns

Expected, documented, and observed configurations remain separate. Physical port capability is not treated as an active connection, and public-Internet reachability is shown only when a reviewed source says so.

Safe public evidence boundaryReviewed 2026-07-28

The reviewed ClearVote 2.5 record identifies the ClearAccess station and its local peripherals, while Clear Ballot's current security policy says certified products are never attached to modems, the Internet, Wi-Fi, or Bluetooth. The exact port occupation and field wiring of a particular station are not established.

This public view records device roles, connection media, evidence scope, and isolation controls. It intentionally excludes IP addresses, credentials, keys, access codes, APNs, SIM identifiers, serial numbers, and site-specific routing details.
1 sourced configuration view1 source imageNo field-observed topology collectedNo source explicitly shows an Internet path
expected layercertified configurationdocumented partial

Certified station boundary and local peripherals

ClearAccess is represented as a touchscreen ballot-marking station with a ballot printer and accessibility inputs. The reviewed sources support local peripheral relationships and a product-level communications boundary, not a field-observed network.

Topologystandalone local peripherals
External pathway evidenceNo external path documented
No highlighted route

No path beyond the ClearAccess station's local peripherals is documented. Clear Ballot's reviewed policy says certified products are not attached to modems, the Internet, Wi-Fi, or Bluetooth.

Public InternetExplicitly excluded by reviewed sources
Dossier connectionNo external connection documented

Evidence classification only. It does not establish a live connection, current deployment, attack path, or security finding.

This is a product-policy and certified-configuration boundary, not a field inspection of a particular station, port, cable, or polling place.

Clear Ballot Group: Protecting Elections: Securityclearballot-security@2026-07-21
U.S. Election Assistance Commission: ClearVote 2.5 Certificate and Scope of Conformanceeac-clearvote-25-scope@2026-07-19
Preparing the interactive topology…
Accessible topology indexSelect a node or connection without using the canvas.
Select a node or connectionMirrors the interactive topology
documentedManufacturer communications boundary

Clear Ballot states that certified products are never attached to modems, the Internet, Wi-Fi, or Bluetooth.

not publicly establishedField port state

The exact enabled interfaces, occupied connectors, and jurisdiction cabling were not established by the reviewed public record.

Operational details withheld

No addresses, credentials, cryptographic material, access codes, or site-specific configuration values are collected or displayed.

A product-level communications policy and a certified component list do not prove the state of a particular port, cable, station, polling place, or election deployment.
Clear Ballot Group: Protecting Elections: Securityclearballot-security@2026-07-21
U.S. Election Assistance Commission: ClearVote 2.5 Certificate and Scope of Conformanceeac-clearvote-25-scope@2026-07-19

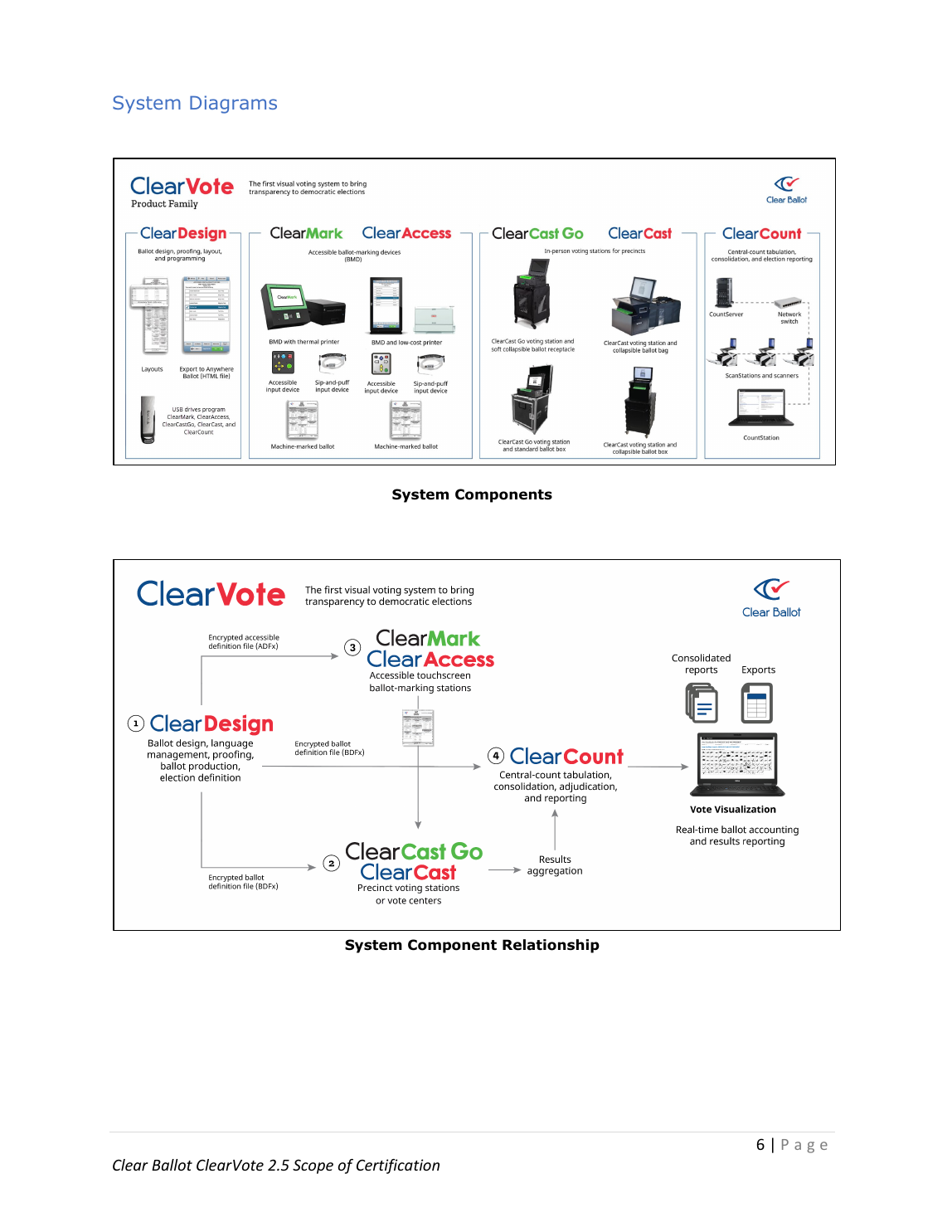

Source diagrams and pagesExpand any image; scope and caveats stay attached.
Evidence gapsUnknowns stay explicit and source-bounded.
