Source-linked configuration dossier
ES&S EVS 6.4.0.0 / DS950
A separate source-linked dossier for the certified DS950 central-count scanner/tabulator, including firmware and hardware revisions, documented motherboard and storage changes, output-transport firmware, central-count cart, and certified UPS alternatives.
Federal certificate ESSEVS6400VVSG 1.0VSTL: Pro V&V, Inc.Editorial: published r3
Network configuration evidence
Documented paths, controls, and unknowns
Expected, documented, and observed configurations remain separate. Physical port capability is not treated as an active connection.
Safe public evidence boundaryReviewed 2026-07-21
The EVS 6.4.0.0 Pro V&V report states that DS950, DS850, and DS450 results were transmitted to the EMS through a closed local area network during accuracy testing. The EAC scope includes the central tabulator, Electionware infrastructure, and a minimum-1-Gb network switch, but it does not establish a jurisdiction's live switch, port, or addressing configuration.
This view publishes only the laboratory-supported closed-LAN result path and its source limits. It excludes IP addresses, credentials, keys, database details, switch settings, VLANs, hostnames, device identifiers, and site-specific routing.1 sourced configuration view2 source imagesNo field-observed topology collected
expected layervstl test configurationdocumented partial
EVS 6.4.0.0 central-tabulator closed-LAN test path
Pro V&V tested DS950 result transmission over a closed LAN to the EMS. The EAC scope separately lists a minimum-1-Gb switch among certified COTS hardware. The public passages support the system-level path but not every physical connector or a field installation.
Topologyclosed wired lan
Select a nodeHighlights its documented paths
DS950Closed-LAN switch
Closed local area network
Transmit central-tabulator result data - documented partialClosed-LAN switchElectionware EMS
Closed local area network
Deliver transmitted result data to the EMS for compilation - confirmeddocumentedClosed LAN
The VSTL report explicitly identifies the DS950 central-tabulator result path as a closed local area network.
not publicly establishedPublic-network path
The reviewed DS950 accuracy-test passage does not describe a public-network transmission path.
not publicly establishedField network state
No jurisdiction switch, port, address, enabled-service, or cable record is established in this dossier.
Operational details withheld
No addresses, credentials, keys, database identifiers, switch settings, VLANs, hostnames, device identifiers, or site routing is collected or displayed.
A VSTL accuracy-test topology is not proof that a jurisdiction connected a DS950, used the listed switch, or transmitted results over a network in a particular election.
Source diagrams and pagesExpand any image; scope and caveats stay attached.

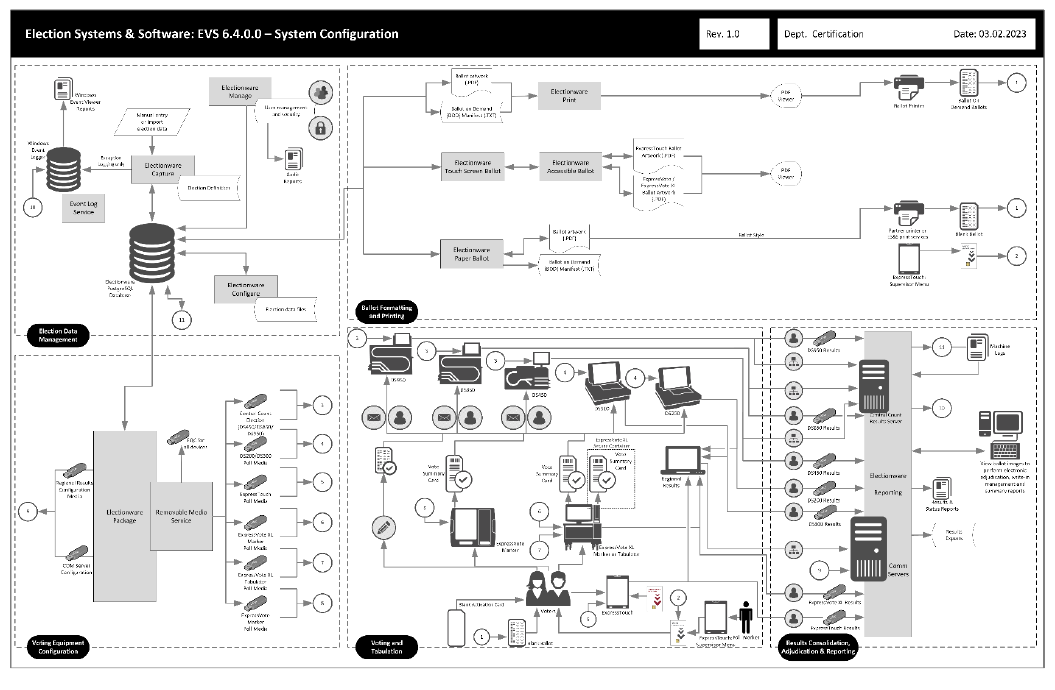

source topology diagramEVS 6.4.0.0 certified-system overview diagram
The system-level figure contains many EVS components and paths. It does not prove that every component or connection is present in a DS950 deployment.

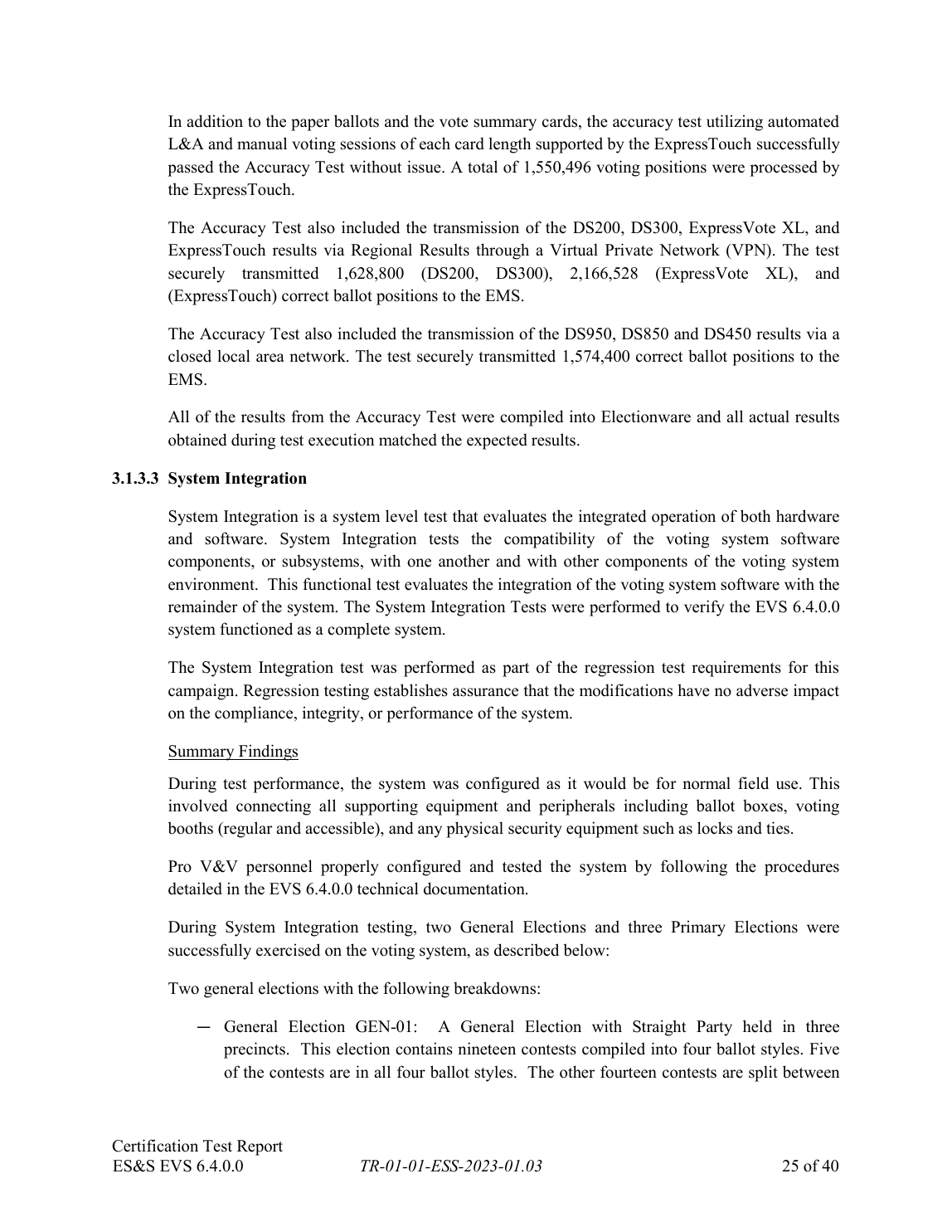

EAC scope PDF page 4, document page 3source document pagePro V&V EVS 6.4.0.0 central-tabulator closed-LAN test statement
This is evidence of a laboratory test configuration and successful result transfer, not a jurisdiction deployment record.
Pro V&V test-report PDF page 30, report page 25Evidence gapsUnknowns stay explicit and source-bounded.
Physical interface and switch map
The reviewed public pages do not enumerate the occupied DS950 connector, switch port assignments, addressing, VLANs, or enabled services for the test or a field installation.
System-level closed-LAN evidence must not be expanded into unreported operational details.Field-observed topology
No dated jurisdiction network diagram, interface inspection, or switch inventory was collected for a particular DS950.
A laboratory path is not a live observation.
